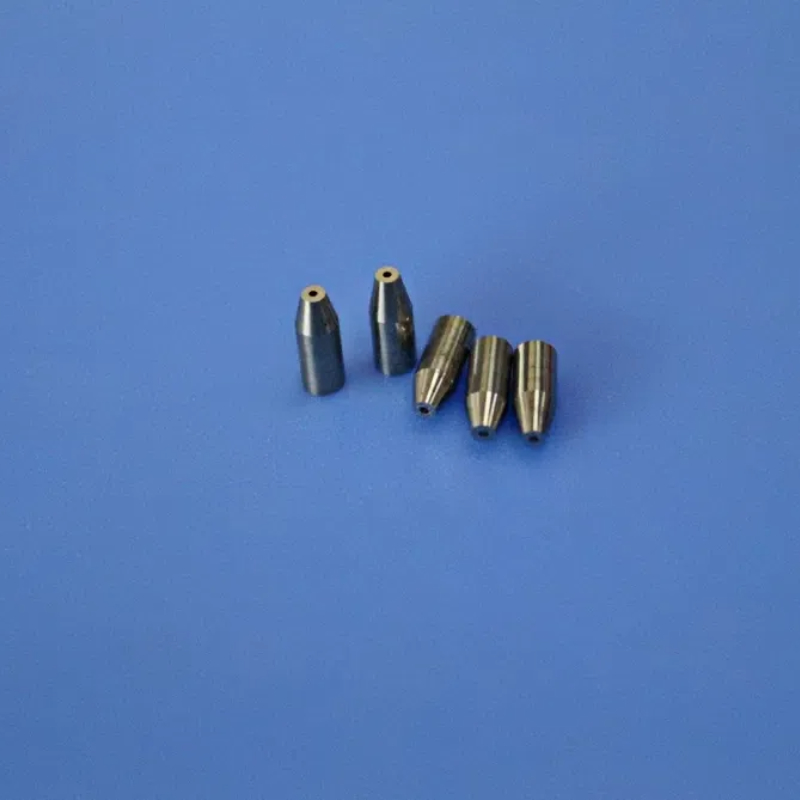

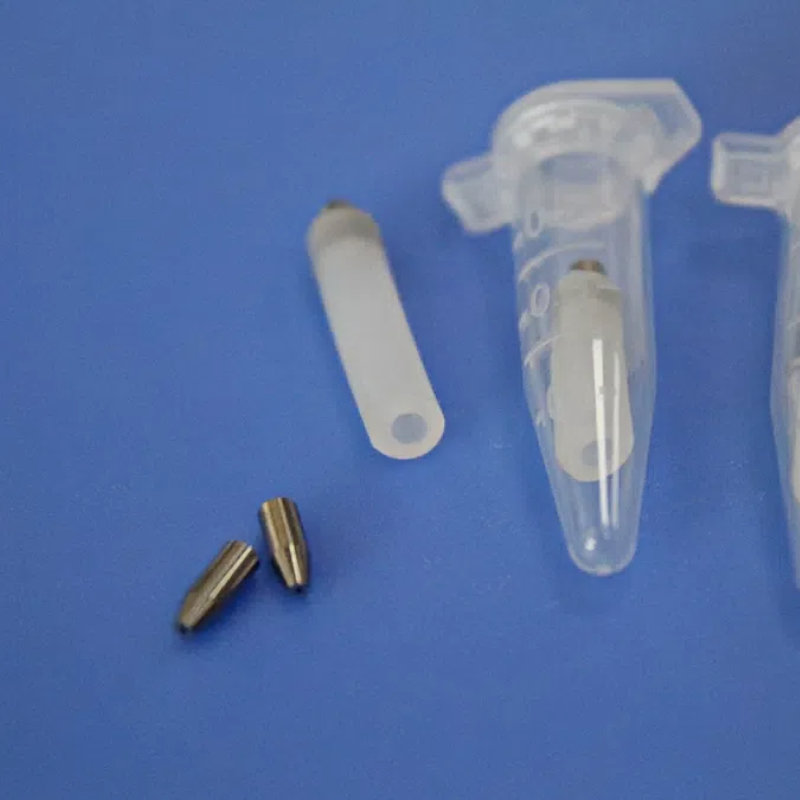

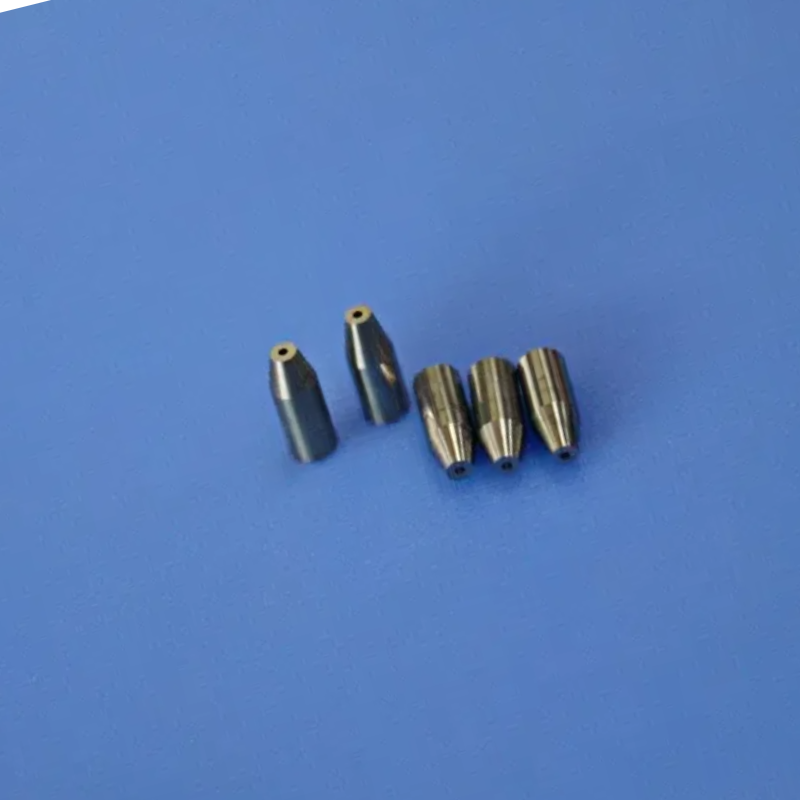

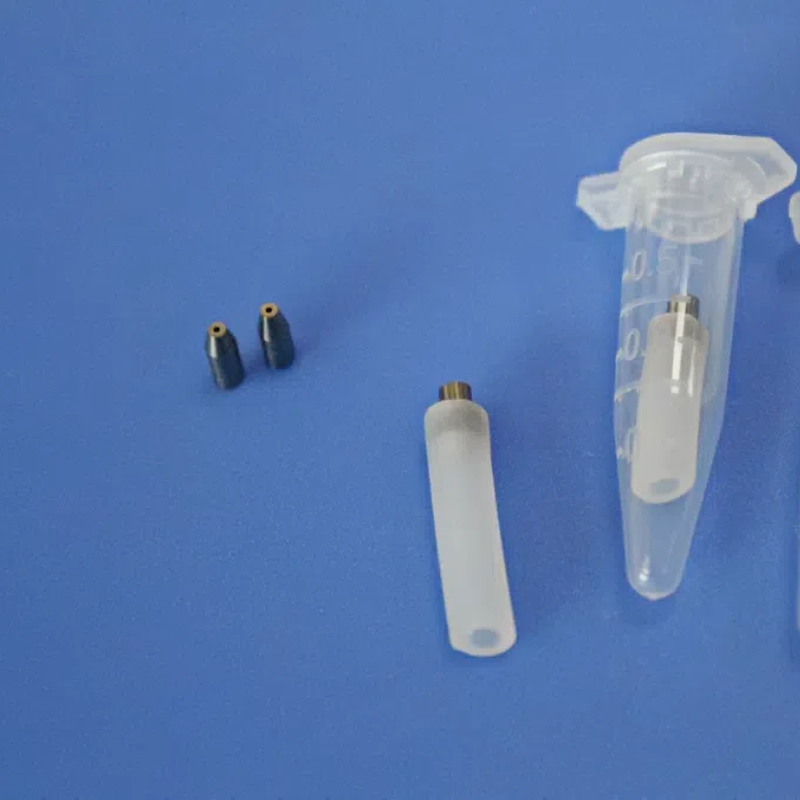

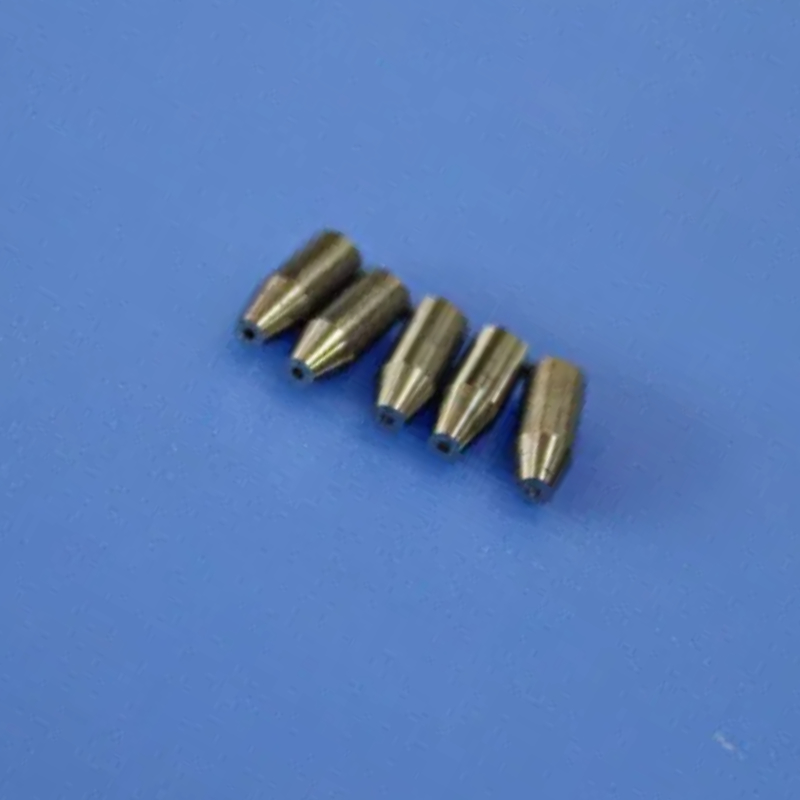

450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity

450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity

Datos del producto:
Lugar de origen: Zhuzhou, China;
Nombre de la marca: Sanxin
Número de modelo: SX1266
Pago y Envío Términos:
Cantidad de orden mínima: 2
Tiempo de entrega: 5-25 días
Condiciones de pago: T/T, Western Union, L/C
Contactar ahora
  • Información detallada
  • Descripción de producto

Información detallada
contenido: WC Tamaño: OEM aceptado
Calificación: Yg6, yg6x, yg8, yg10x; Agujero: Personalizado
Conductividad térmica: 110 W/mK Fabricante: Sí
Ventaja: Alta precisión buena resistencia al desgaste Producto: Nozzle de carburo de tungsteno
Precisión: Alta precisión Tipo de boquilla: Diámetro interior recto
Acabado superficial: Pulido
Resaltar:

450µm tungsten carbide nozzle

,

high thermal conductivity nozzle

,

tungsten carbide processing nozzle

Descripción de producto

450µm Precision Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity
Mirror-finished Flow Channel Treatment 450µm Precision Hard Metal Solder Ball Nozzle
The precision-manufactured 450µm solder ball nozzle, through nano-scale aperture processing and mirror-finished flow channel treatment, completely solves the wear and clogging problems of multi-material nozzles, achieving non-clogging, wear-free, and long-life precision solder ball jetting in the field of microelectronics welding.
Structure
  • Aperture Accuracy: 450µm ± 1µm (Laser Test Certified)
  • Structural Features:
    • Monolithic, one-piece construction (seamless, uncoated)
    • Mirror-polished flow channel (Ra ≤ 0.1µm)
    • Optimized 15° flow cone angle
  • Thermal Management:
    • Thermal conductivity 85 W/m*K
    • Thermal expansion coefficient 4.5*10⁻⁶/K
Performance Comparison
The absolute advantage of integral tungsten carbide nozzles
Performance Specifications Carbide Integral Nozzle Stainless Steel Nozzle Ceramic Nozzle Advantages
Service Life 2,000,000+ cycles 300,000 cycles 800,000 cycles 150% increase in service life
Aperture Stability ±1µm ±5µm ±3µm 300% increase in accuracy
Thermal Deflection ≤0.001mm 0.015mm 0.005mm 5x increase in stability
Maintenance Cost No maintenance required Frequent replacement Regular replacement 70% cost reduction
Core Manufacturing Processes
  1. Precision Drilling Technology
    • Micro-hole EDM
    • Aperture Accuracy ±1µm
    • Roundness ≤0.5µm
  2. Mirror Polishing
    • Diamond Paste Polishing
    • Flow Channel Roughness Ra ≤0.1µm
    • Electrolytic Polishing for Deburring
  3. Quality Inspection System
    • Full Inspection with Industrial Endoscopes
    • Laser Aperture Measurement
    • Flow Testing Verification

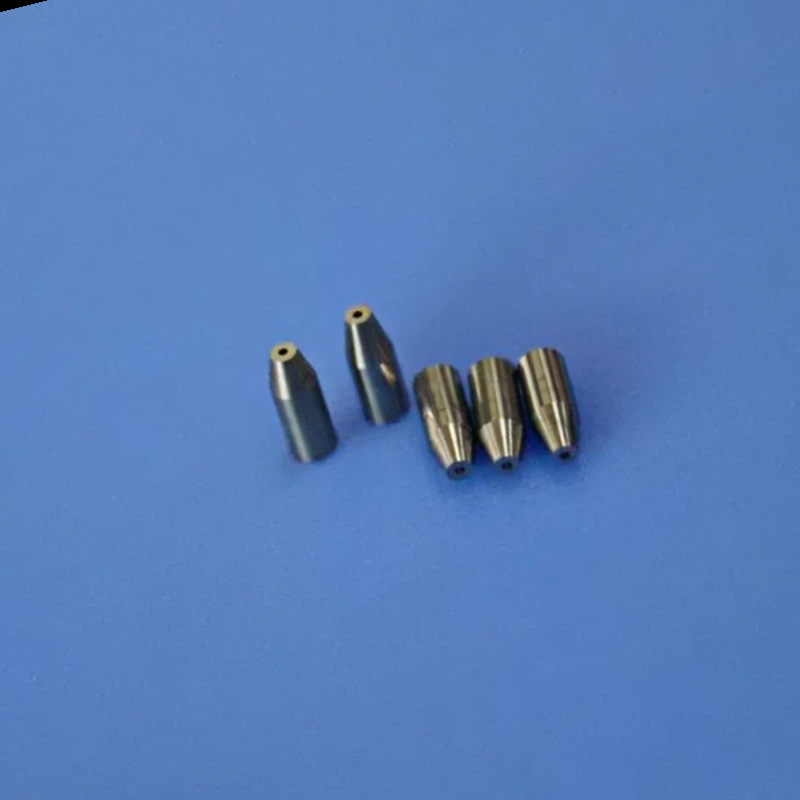

450µm Tungsten Carbide Nozzle with 110 W/mK Thermal Conductivity 0
