Non-Magnetic Tungsten Carbide Precision Hole Base with HRA92 Hardness and ±0.001 mm Tolerance for Sensitive Equipment

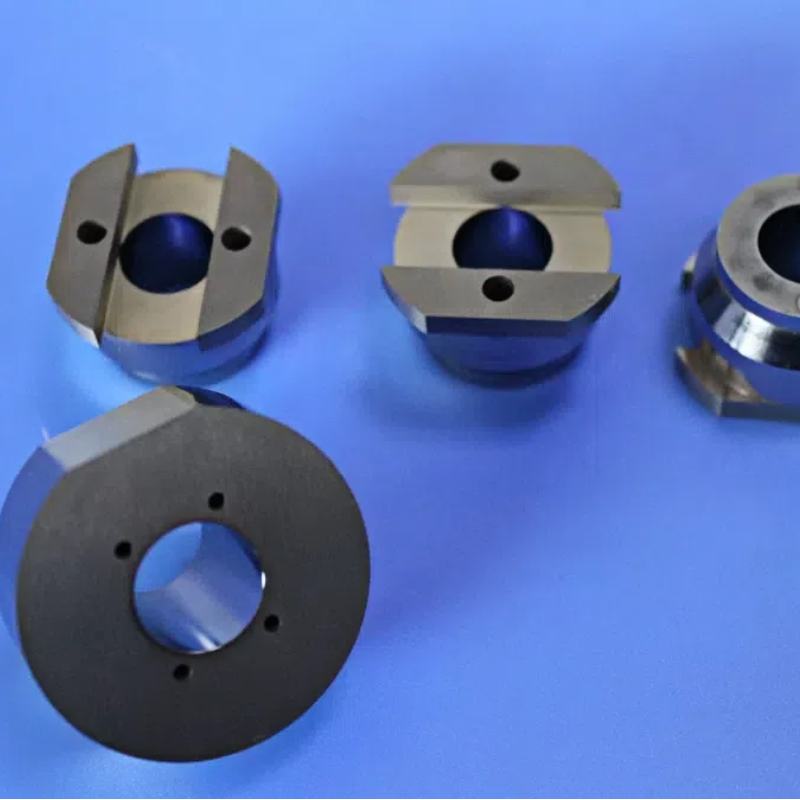

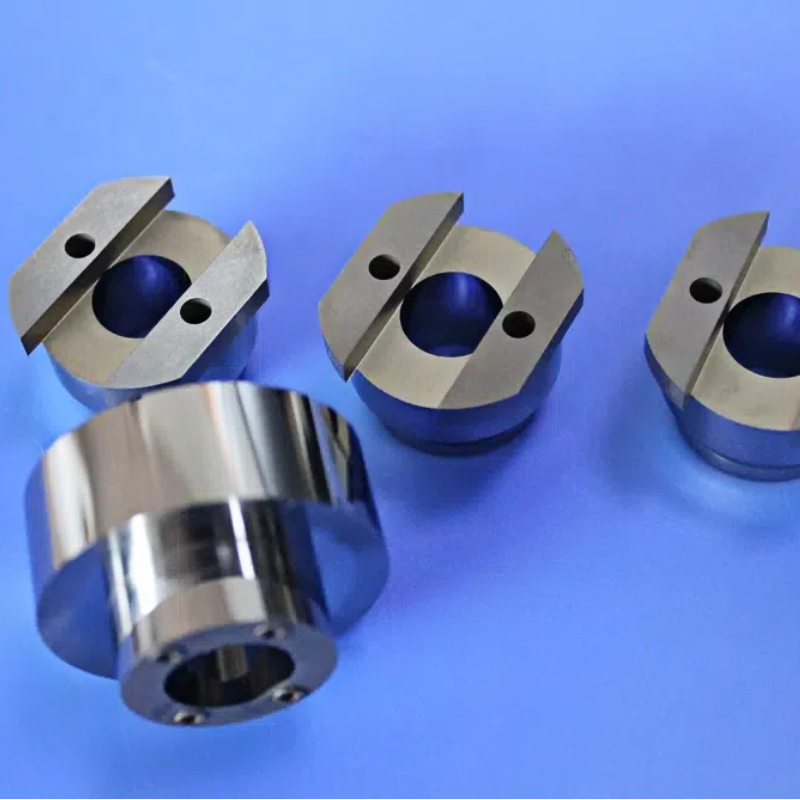

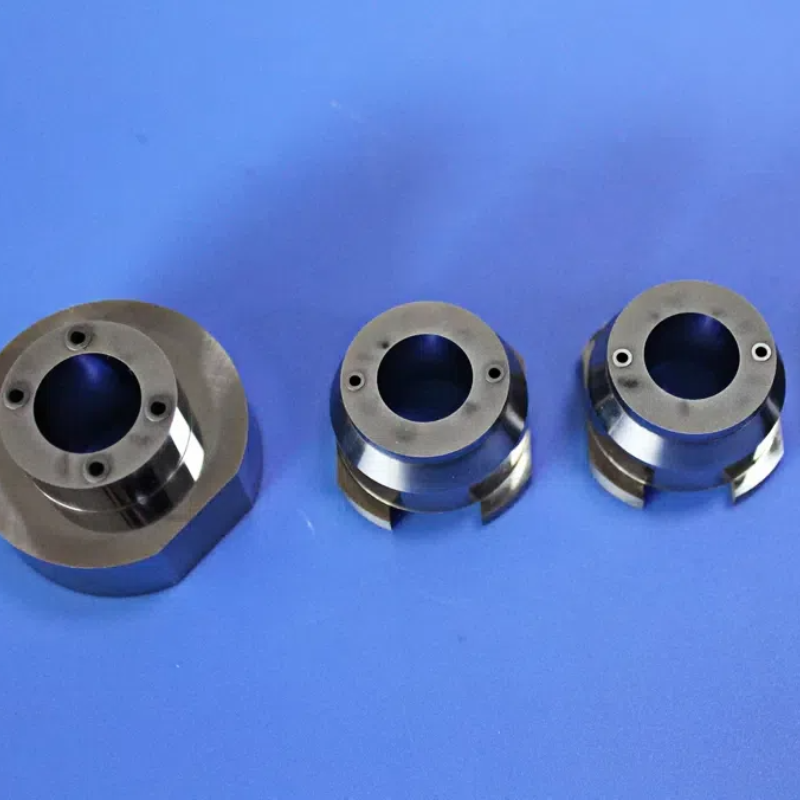

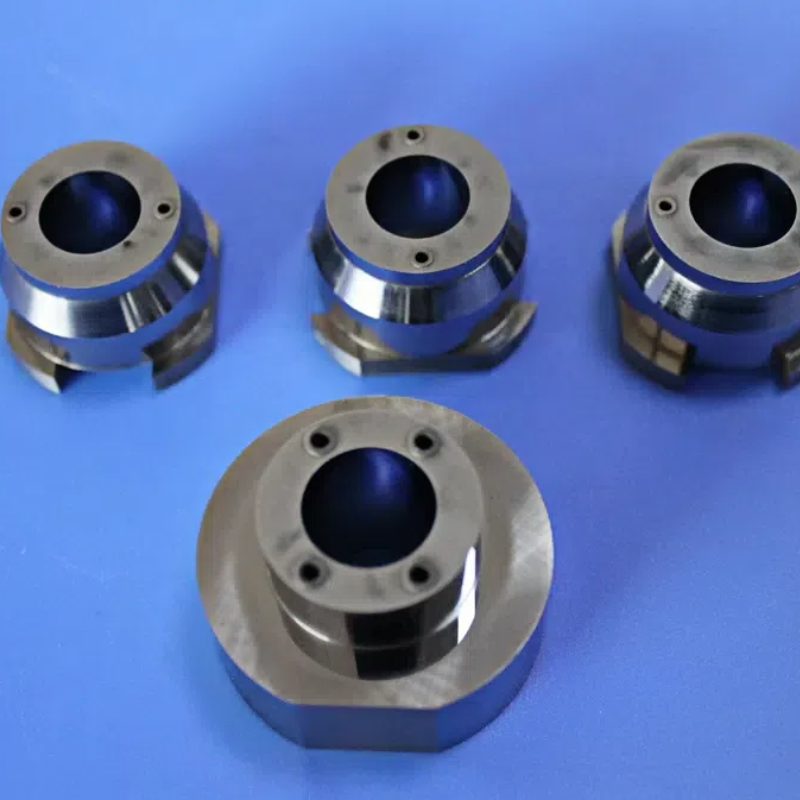

Non-Magnetic Tungsten Carbide Precision Hole Base with HRA92 Hardness and ±0.001 mm Tolerance for Sensitive Equipment Non-Magnetic Tungsten Carbide Precision Hole Base with HRA92 Hardness and ±0.001 mm Tolerance for Sensitive Equipment Non-Magnetic Tungsten Carbide Precision Hole Base with HRA92 Hardness and ±0.001 mm Tolerance for Sensitive Equipment Non-Magnetic Tungsten Carbide Precision Hole Base with HRA92 Hardness and ±0.001 mm Tolerance for Sensitive Equipment

Non-Magnetic Tungsten Carbide Precision Hole Base with HRA92 Hardness and ±0.001 mm Tolerance for Sensitive Equipment

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: Sanxin
Certificación: ISO
Número de modelo: SX1300
Pago y Envío Términos:
Cantidad de orden mínima: 2
Tiempo de entrega: 5-30 días
Condiciones de pago: T/T, L/C, Unión Occidental
Contactar ahora
  • Información detallada
  • Descripción de producto

Información detallada
Alta dureza: HRA92 Categorías: Procesamiento de carburo de tungsteno
Opciones de personalización: Formas, tamaños y grados personalizados disponibles Inercia química: Alto
Módulo elástico: 530 - 700 GPa Tolerancia: ± 0.001 mm
Servicio: OEM y ODM Procesamiento de carburo: Alta durabilidad
Fuerza compresiva: ≥ 5000 MPa Tipo de negocio: Fabricante

Descripción de producto

Non-Magnetic Carbide Precision Hole Bases & Mounting Blocks for Sensitive Equipment

Our Non-Magnetic Tungsten Carbide Precision Hole Bases are engineered to serve as the ideal foundation for demanding applications. Manufactured from specialized WC-Ni (Tungsten Carbide-Nickel) alloy, these precision components deliver the essential combination of absolute magnetic neutrality, exceptional dimensional stability, and superior wear resistance for applications where standard steel or cobalt-bonded carbide cannot be used.

Exceptional Hardness & Dimensional Stability
Property Typical Value Benefit
Hardness 90 - 92 HRA Resists wear and deformation over millions of cycles
Density 14.8 - 15.0 g/cm³ High rigidity, excellent vibration damping
Thermal Expansion 5.5 × 10⁻⁶ /K Maintains precision across temperature variations
Compressive Strength > 4000 MPa Withstands high clamping forces without deformation
Precision Hole Machining

Our manufacturing capabilities achieve exceptional accuracy for critical hole features:

  • Hole diameter tolerance: ±0.002 mm (H4/h4 grade)
  • Hole position tolerance: ±0.005 mm
  • Surface finish (bore): Ra 0.2 - 0.4 μm (ground), Ra 0.1 μm (polished)
  • Perpendicularity: ≤ 0.003 mm per 10 mm depth
Key Applications & Industries
Industry Application Why Choose Our Hole Base
Semiconductor Manufacturing Wafer stage mounting, mask aligner bases, metrology equipment fixtures Zero magnetic interference with electron beams, wear-free precision over millions of cycles
Medical Imaging (MRI) RF coil mounts, patient positioning system bases Absolute non-magnetic property ensures image fidelity and patient safety
Aerospace & Defense Guidance system component mounts, inertial navigation bases Non-magnetic signature, exceptional stability under vibration and temperature variation
Precision Metrology CMM fixture bases, laser interferometer mounts Thermal stability maintains calibration accuracy
Scientific Research Electron microscope stages, particle detector mounts No magnetic field distortion, ultra-high vacuum compatible
Automated Assembly Precision fixture bases, robotic end-effector mounts Long-term accuracy without wear-induced drift
Why Partner With Us?
  • Specialized Expertise: Years of experience manufacturing precision carbide components for magnetic-sensitive applications
  • Application Engineering: Our team helps optimize hole base design for your specific mounting requirements
  • Precision Manufacturing: Advanced CNC grinding, EDM, and coordinate measurement capabilities
  • Global Supply: Consistent quality, reliable delivery, and professional export documentation worldwide
  • ISO 9001 Certified: Quality management systems ensure consistent product quality

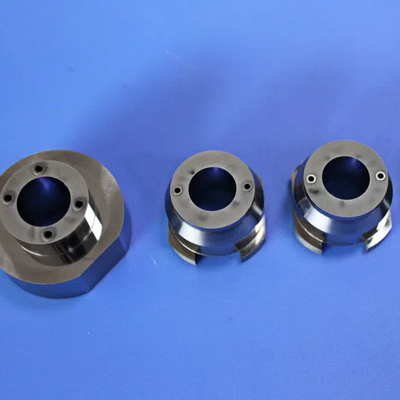

Non-Magnetic Tungsten Carbide Precision Hole Base with HRA92 Hardness and ±0.001 mm Tolerance for Sensitive Equipment 0
