Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications
Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications

Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications

Datos del producto:
Lugar de origen: zhuzhou, China
Nombre de la marca: Sanxin
Número de modelo: SX1269
Pago y Envío Términos:
Cantidad de orden mínima: 2
Tiempo de entrega: 5-25 días
Condiciones de pago: Unión occidental, T/T, L/C
Contactar ahora
  • Información detallada
  • Descripción de producto

Información detallada
Procesamiento de carburo: Alta durabilidad Material: Carburo de tungsteno
Alta dureza: HRA92 Resistencia química: Resistente a la mayoría de los ácidos y álcalis
Esperanza de vida: Largo Resistencia a la flexión: 1,500 MPa
Superficie: Pulido Aplicaciones: Herramientas de corte, piezas de desgaste, herramientas de minería, brocas, etc.
Ductilidad: Buena ductilidad y maquinabilidad Característica: una mayor durabilidad
Servicio: Servicio personalizado de un solo paso
Resaltar:

HRA92 Hardness Non-magnetic Carbide Rotating Cylinder

,

1

,

500 MPa Flexural Strength WC-Ni Series Carbide Cylinder

Descripción de producto

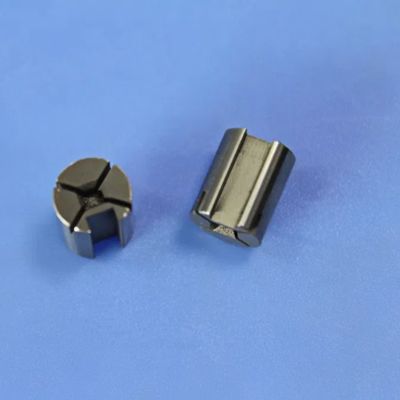

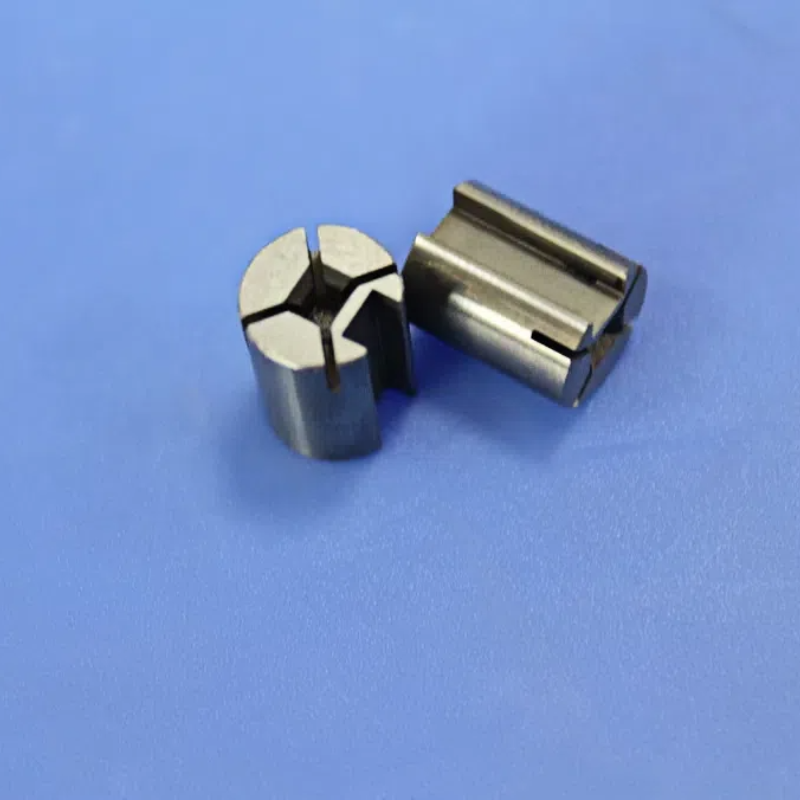

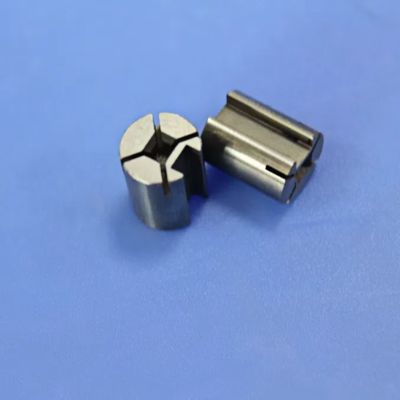

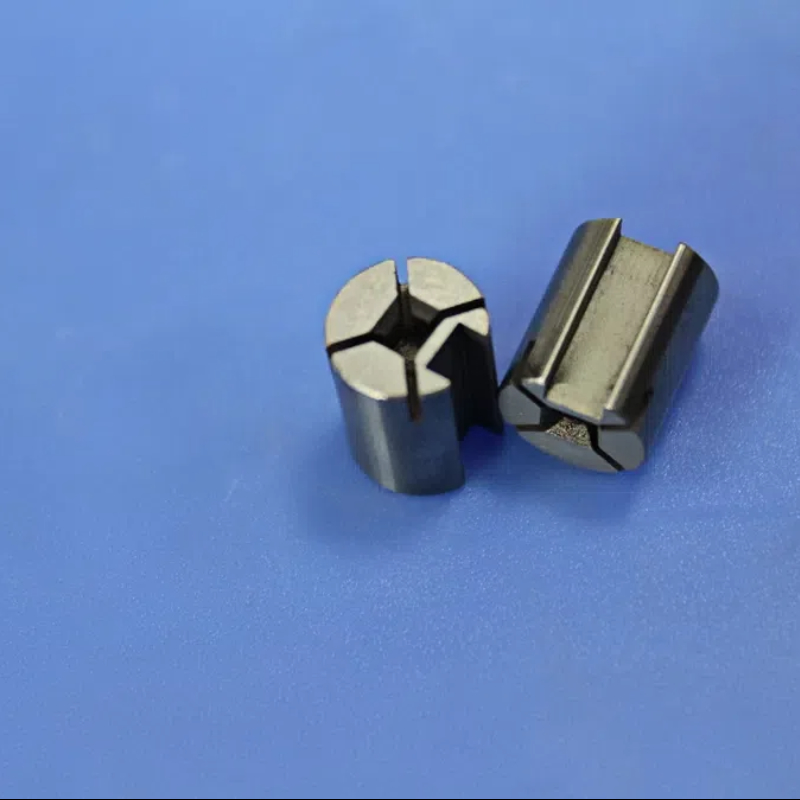

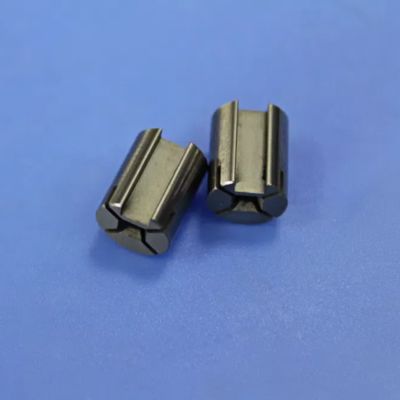

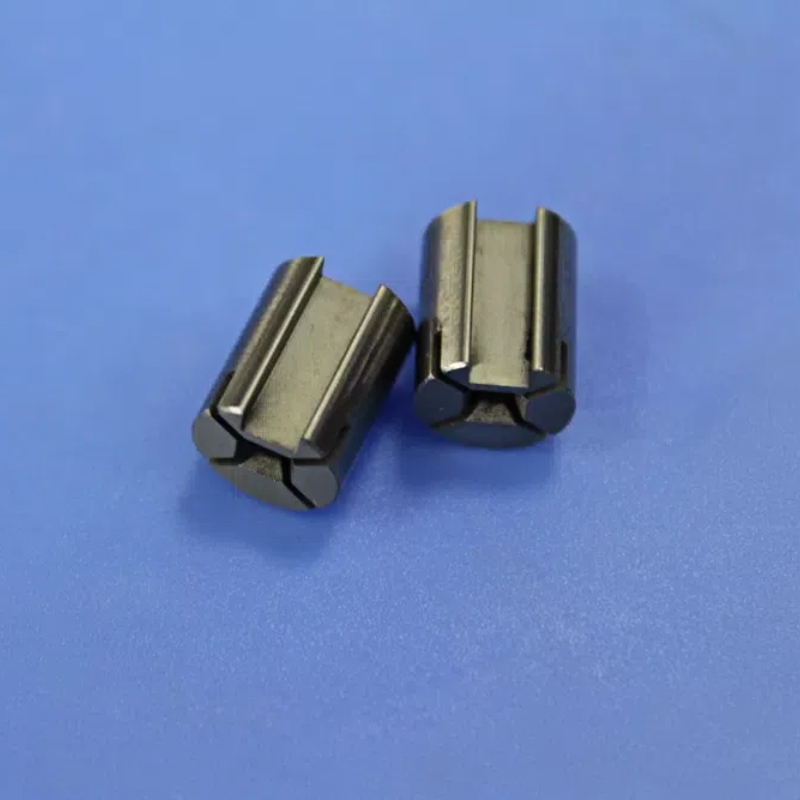

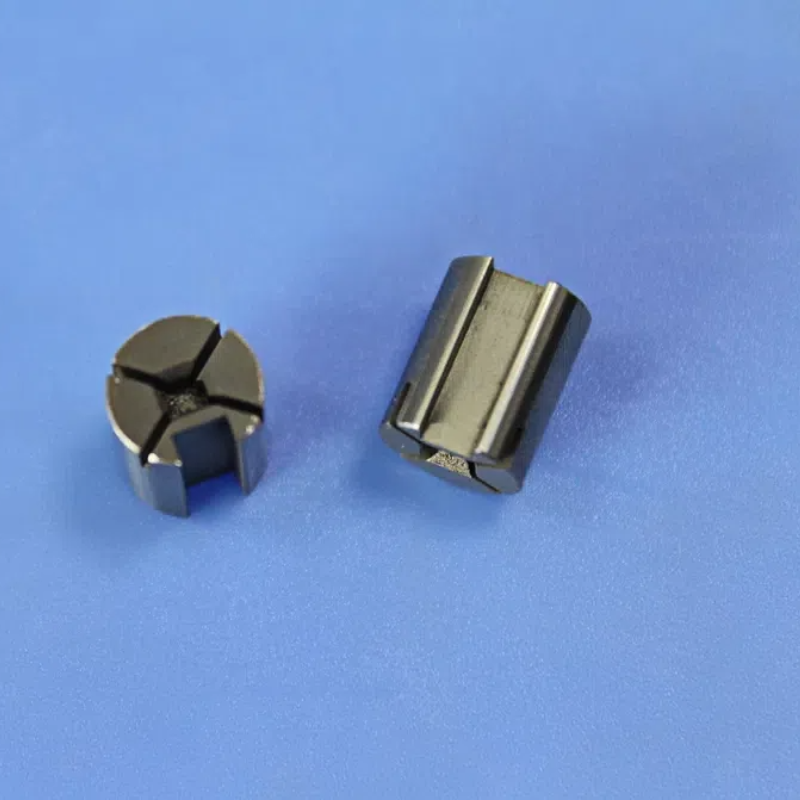

Magnetic Permeability <1.002 WC-Ni Series Non-magnetic Special Research Carbide Rotating Cylinder
The rotating column is precisely manufactured using WC-Ni non-magnetic cemented carbide. By replacing the traditional cobalt element with a nickel-based binder phase, this scientific solution completely eliminates magnetic interference problems found in ordinary cemented carbide. In magnetic field-sensitive environments such as MRI medical equipment, semiconductor manufacturing, and scientific research instruments, it achieves high precision, no magnetic interference, and exceptional stability.
Main Grades of Non-Magnetic Tungsten Carbide
Grade/System Main Components Hardness (HRA) Flexural Strength (MPa) Characteristics and Applications
M10 Non-Magnetic Tungsten Carbide WC-Ni System 92.5 3240 General-purpose non-magnetic molds, corrosion-resistant tools
WC-Ni System WC-0.75Al-14.25Ni 87.4 1670 Non-strongly magnetic at room temperature, relatively high magnetic permeability
WC-Cr₃C₂-Ni System WC-Cr₃C₂-Ni - - Commonly used in industry, with 1-3% Cr₃C₂ addition
WC-Cr₃C₂-Mo-Ni System WC-Cr₃C₂-Mo-Ni - - Adds Mo to improve magnetic properties
MAST-N20 WC-Ni (Japan) 91.0 3300 Highly corrosion-resistant, suitable for nozzles, seals, and molding dies
Grade Selection Tips: The above grades primarily achieve non-magnetic properties by using nickel (Ni) as a binder phase. Different grades have different composition and performance emphases. When selecting, please consider your specific magnetic permeability requirements, hardness, strength, and corrosion resistance.
Core Technologies
  • Non-magnetic Material Design: A nickel-based binder phase ensures non-magnetic properties from the source. Strict composition control prevents the introduction of magnetic impurities.
  • Precision Manufacturing and Processing: Specialized grinding technology tailored to non-magnetic materials ensures dimensional accuracy (±0.002mm) and dynamic balance grade (G1.0).
  • Strict Quality Inspection: 100% magnetic permeability testing ensures every product meets non-magnetic standards. Industrial CT non-destructive testing guarantees internal quality.
Typical Application Scenarios
  • Medical imaging equipment: Rotating components in MRI scanners prevent interference with magnetic resonance imaging.
  • Semiconductor manufacturing: High-precision equipment such as wafer transfer robots and photolithography machines prevent magnetic field effects on microelectronic components.
  • Scientific research equipment: Electron microscopes and high-energy physics experimental equipment ensure measurement accuracy.
  • Aerospace: Satellite attitude control components and aviation instruments meet non-magnetic environment requirements.
Non-magnetic Carbide Rotating Cylinder with HRA92 Hardness 1,500 MPa Flexural Strength and High Durability for Precision Applications 0
